Product Details
Specifications
Reference Material
Part Interchange
Status:
Active
Weight:
10.13
Unit Pack:
1
Pallet Quantity:
100
UPC Code:
737238370109
Brand:
Meritor
Marketing Group:
16N Series
Series:
16N
Number of Splines:
10
Spline Diameter:
1.750 in.
Hub Diameter:
2.63 in.
Spline Length:
2.25 in.
Center To End:
6.00 in.
Use U-Joint Kit:
M279X
Counter Bore Depth:
0.25 in.
Joint Angle:
45 degrees
Deflector:
DEFR42-1
Yoke Dim. Across Ears:
5.31 in.
Bearing Cap Diameter:
1.88 in.
VMRS Code:
024-001-003
| Part Number | Description |
|---|
| Reference Material: |
For measuring guideline instructions: Click here
|
| Xpress Facts: |
Driveline Product Information
|
Competitor
Part Number
Dana
544761X
Other
16N44761XRI, 823516N44761X, ATI16N44761X, HR16N44761X, S11569, SI544761X, TDA16N44761X
Model
16N 4 4761X

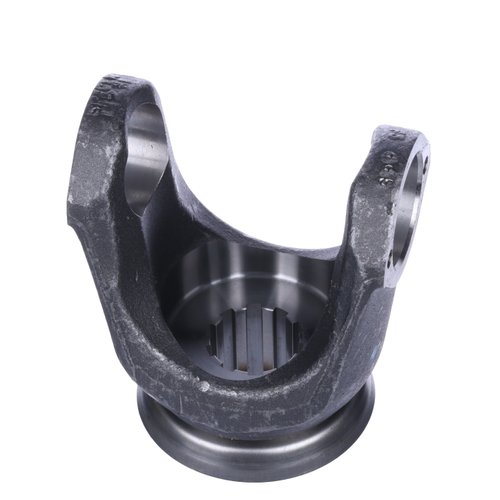

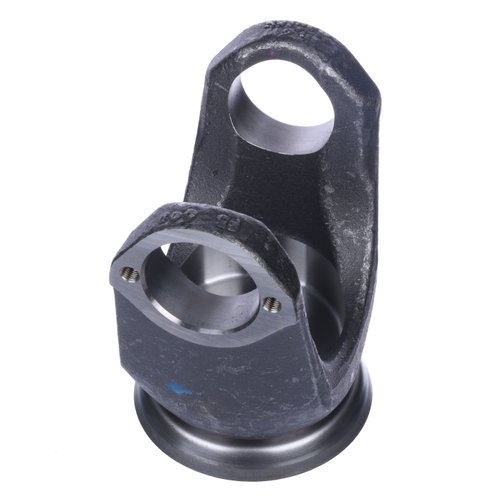

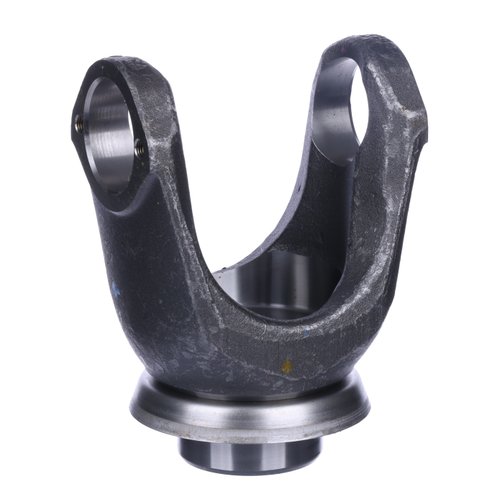

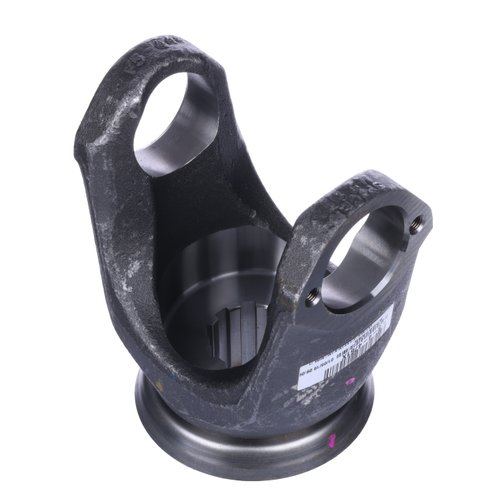

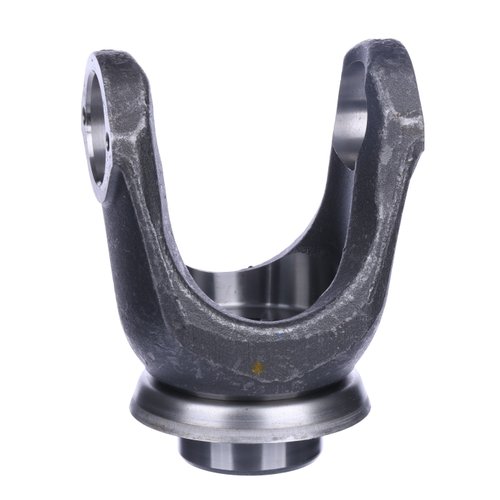

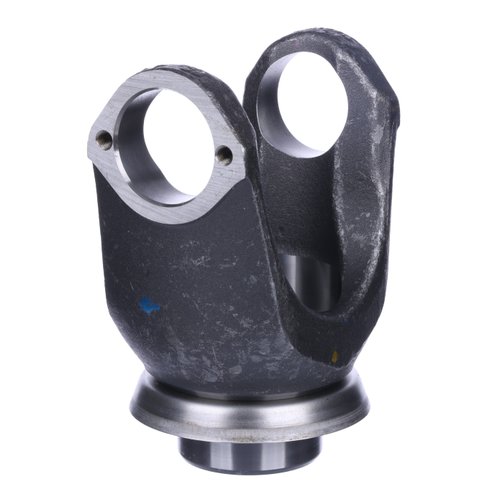

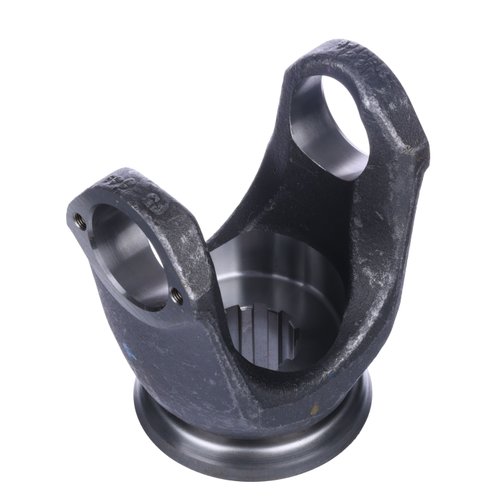

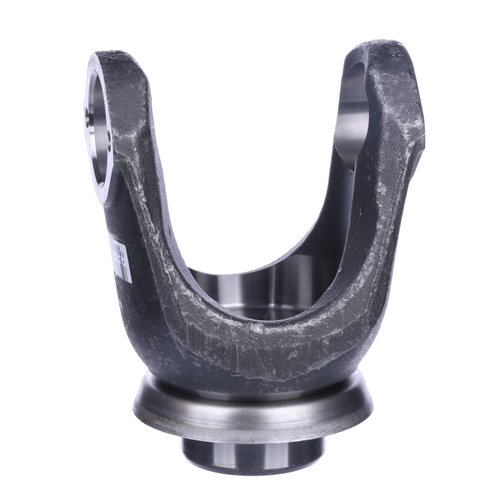

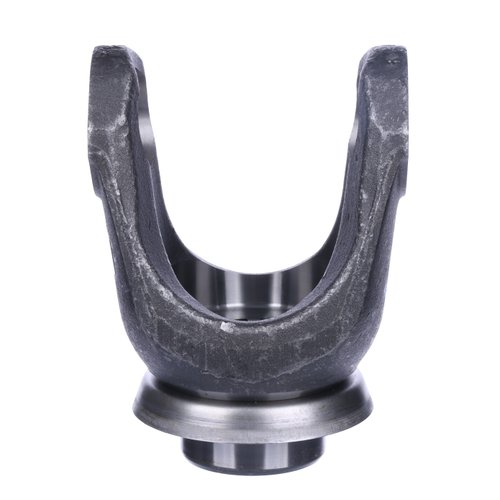

END YOKE
Qty
