05156321003

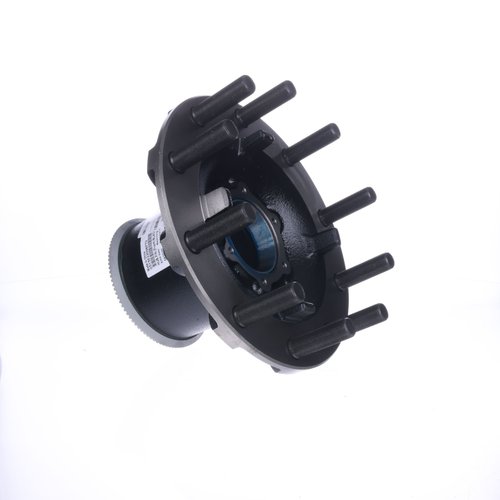

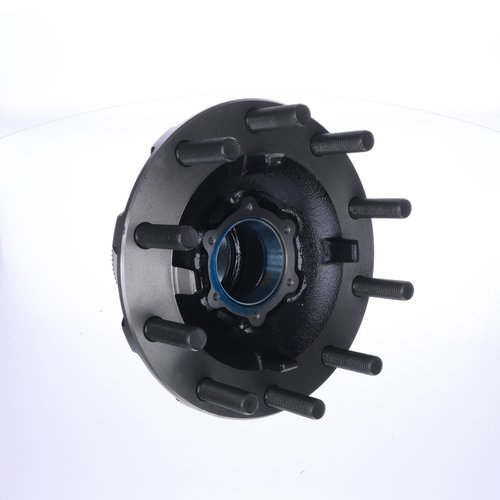

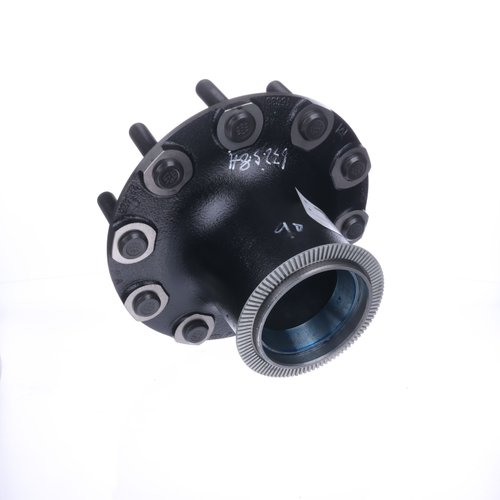

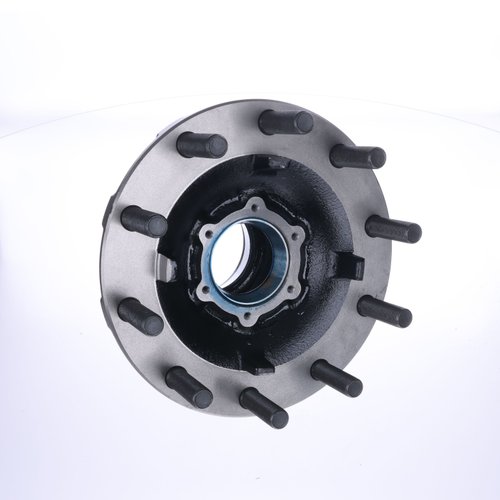

HYDRAULIC BRAKE - HUB AND STUD ASSEMBLY
Submit
Cancel
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Production BOM
Reference Material
Part Interchange
Status:
Active
Weight:
49.33
Unit Pack:
1
Pallet Quantity:
10
UPC Code:
680502267080
Brand:
Meritor Genuine
Marketing Group:
Hubs
Hub Style:
Conventional
Axle Series:
FF/FG
Tone Ring:
Y
Axle Application:
Steer
Fully Dressed:
No
Hub Type:
Hub Only
ABS Ring Number:
3237L1260
Base Part Number:
15632
Outer Cup:
3720
Wheel Stud Pattern:
10
Inner Cup:
HM212011
Outer Cone:
3782
Hub Cap Pattern:
06
IBS to Outer Surface:
4.455/4.415 in.
Hub Cap Bolt Circle Diameter:
4.50 in.
Inner Bearing Surface (IBS) to Mounting Face:
5.19 in.
Oil Seal:
A1205B2264
ABS Pilot Diameter:
5.617/5.614 in.; 5.321/5.318 in.
Drum Bolt Circle Diameter:
11.25 in.
Hub Cap Bolt Thread:
5/16-18 UNC-2B
Drum Bolt Size:
.904/.906 in.
Wheel Stud Hole:
.904/.906 in.
Drum Bolt Pattern:
10
Wheel Stud Bolt Circle Diameter:
11.25 in.
IBS to OBS:
3.395/3.355 in.
Inner Cone:
HM212049
GAWR (lb):
14600
Brake Type:
Drum
VMRS Code:
018-001-003
Drum Pilot Diameter:
8.778/8.775 in.
Flange Outer Diameter:
13.00 in.
Wheel Pilot Diameter:
8.653/8.646 in.
Wheel Stud:
09-001989
| Part Number | Description |
|---|---|
| HUB & DRUM ASSY |
Bill of Materials:
Part No
Quantity
Description
| Catalog: |
PB2006 - Meritor Drums Hubs and Rotors Product Catalog
|
| Maintenance Manual: |
MM99100 - Wheel Equipment: Disc Wheel Hubs & Brake Drum Failure Analysis
|
| Sales Publication: |
SP18120 - Meritor Genuine Light Weight Trailer Hubs for the Aftermarket
|
| Xpress Facts: |
Wheel End Product Information
|
| Competitor | Part Number |
|---|---|
| Other | 823505156321003, TDA05156321003 |
