Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
8.10
Unit Pack:
1
Pallet Quantity:
240
UPC Code:
737238896272
Brand:
Meritor Genuine
Marketing Group:

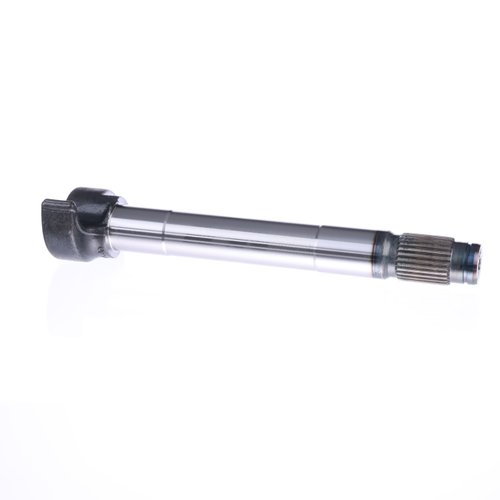

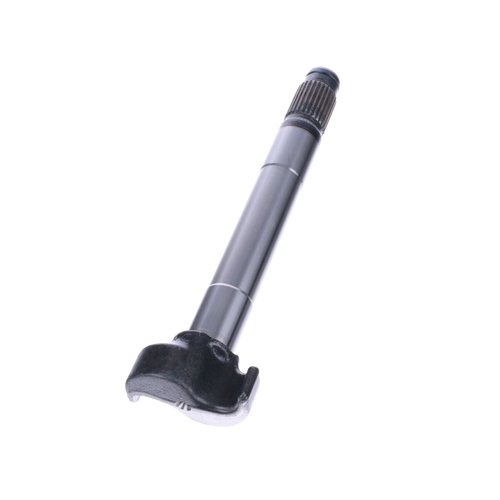

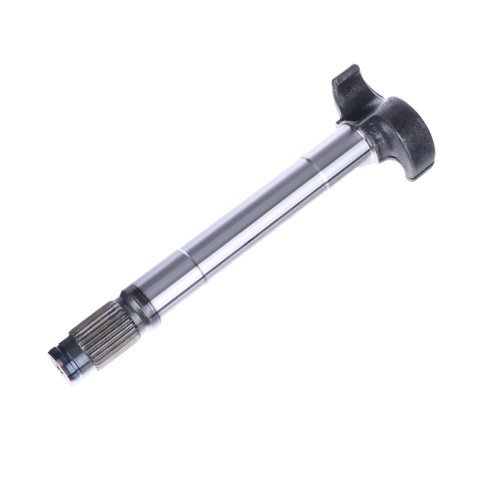

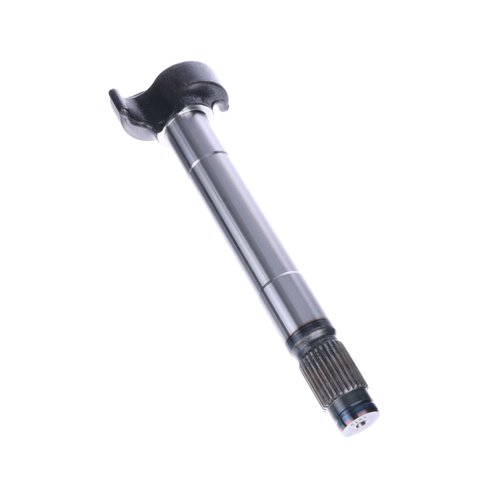

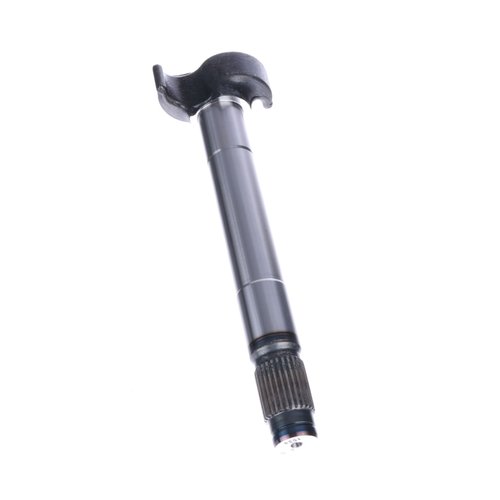

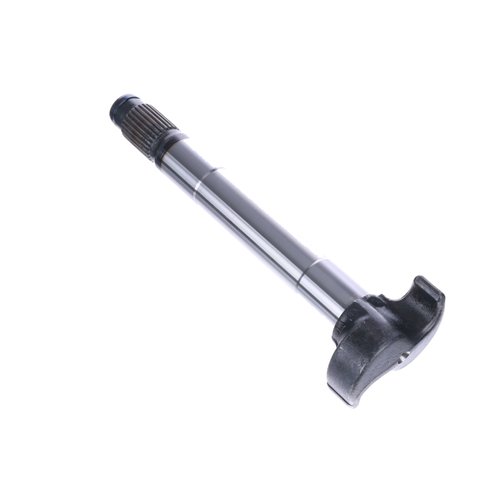

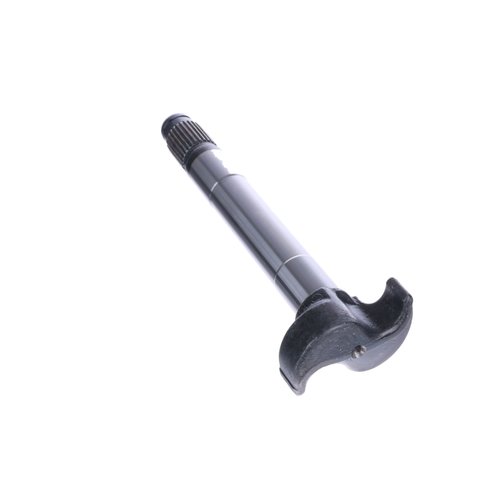

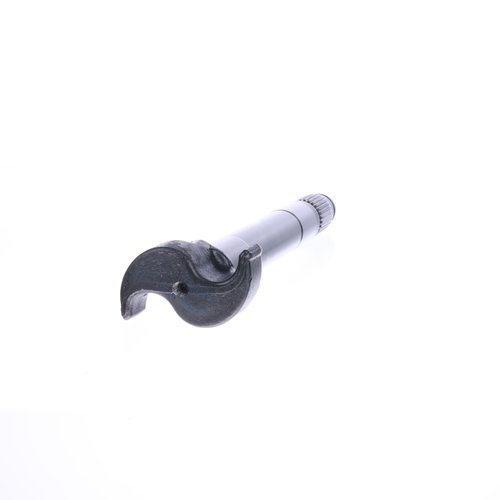

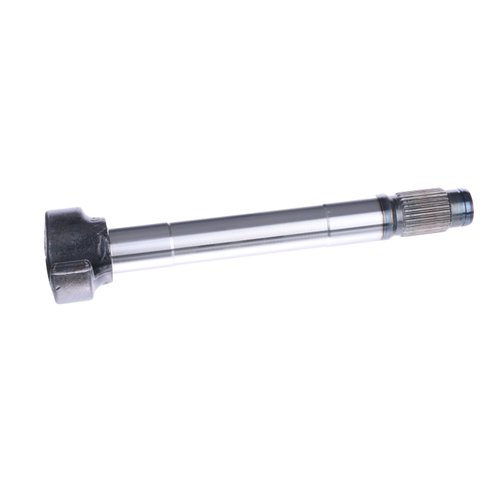

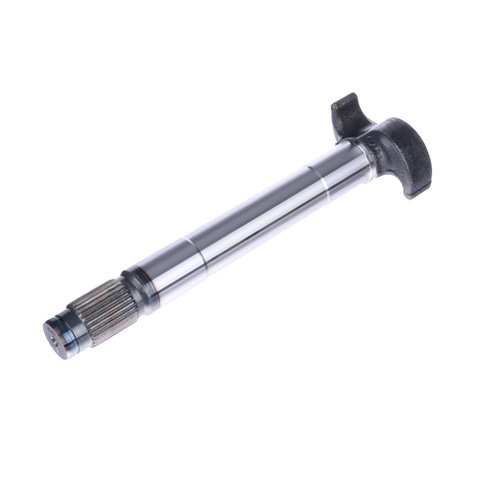

Camshafts
Camshaft Spline Count:
28
Left or Right:
RH
Brake Diameter:
15.00 in. and 16.50 in.
Effective Length:
11.09 in.
Head Type:
11
Camshaft Spline Dia.:
1.50 in.
Bushing Journal Dia.:
1.50 in.
OEM:
Meritor
Paired Camshaft:
2210E7519F
Camshaft Repair Kit:
KIT8042
Brake Type:
Q Plus
VMRS Code:
013-017-014
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Other | 82352210D7518F, ATI2210D7518F, TDA2210D7518F |
