Product Details
Specifications
BOM
Reference Material
Part Interchange
Status:
Active
Weight:
8.55
Unit Pack:
1
Pallet Quantity:
240
UPC Code:
737238730835
Brand:
Meritor Genuine
Marketing Group:
Camshafts
Brake Diameter:
16.50 in.
Left or Right:
RH
Brake Type:
Q Plus
Bushing Journal Dia.:
1.50 in.
Effective Length:
11.95 in.
Brake Hardware Kit:
KIT8000HD
Head Type:
11
Paired Camshaft:
2210L7552F
Camshaft Repair Kit:
KIT8042
Camshaft Spline Dia.:
1.50 in.
Camshaft Spline Count:
28
OEM:
Meritor
VMRS Code:
013-017-004
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Service Parts Instructions: |
TP94102 - Service Parts Instructions
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Other
12381178, 2210K7551FRI, 3133405, 82352210K7551F, ATI2210K7551F, TDA2210K7551F
Model
2210K7551F

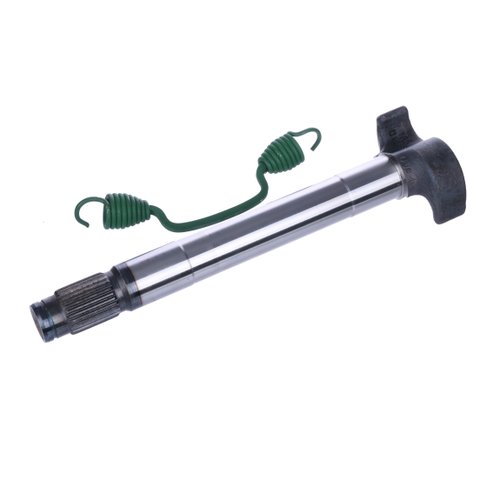

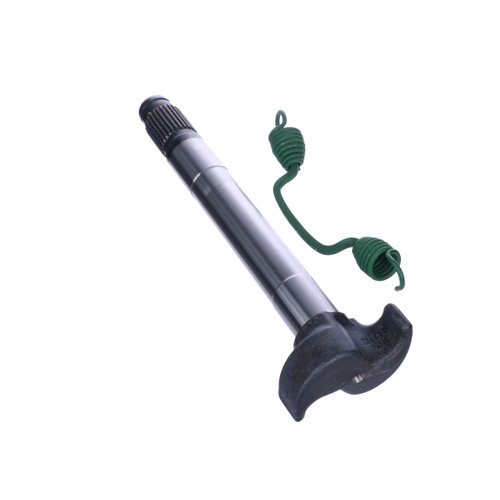

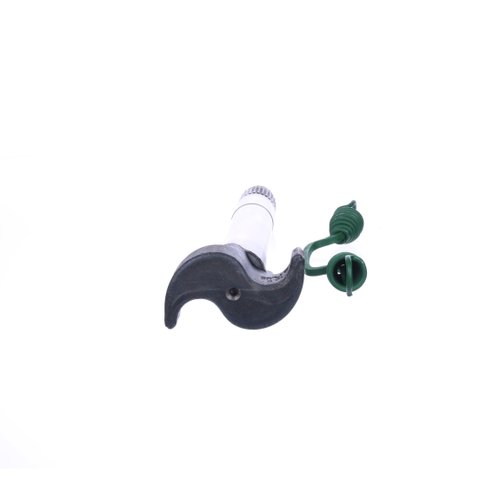

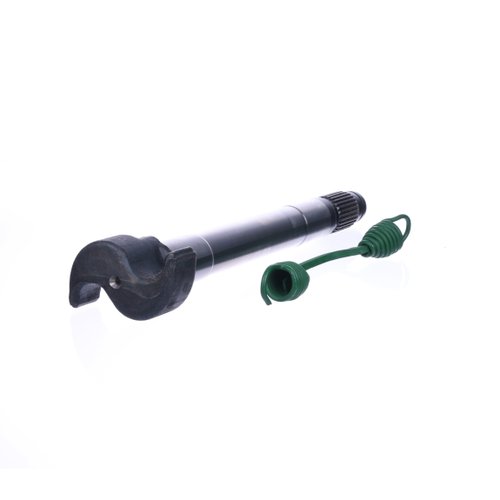

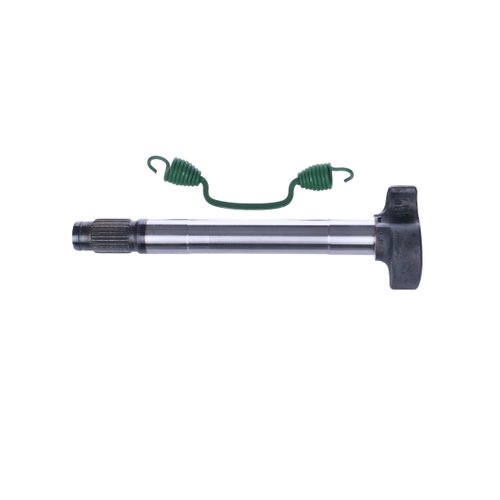

CAMSHAFT, RIGHT HAND
Qty
