Product Details
Specifications
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
9.50
Unit Pack:
1
Pallet Quantity:
180
UPC Code:
737238820871
Brand:
Meritor Genuine
Marketing Group:

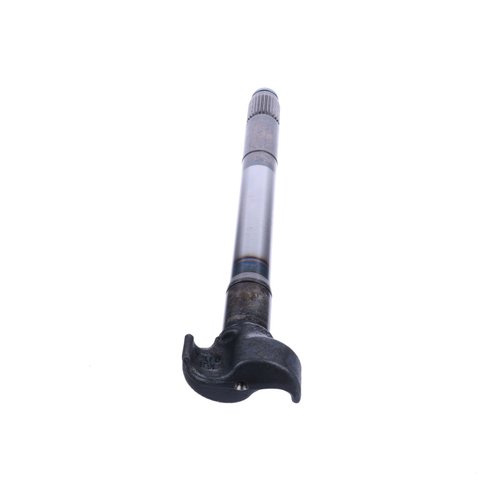

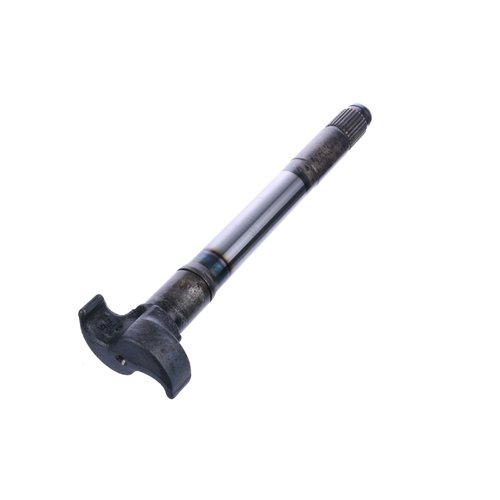

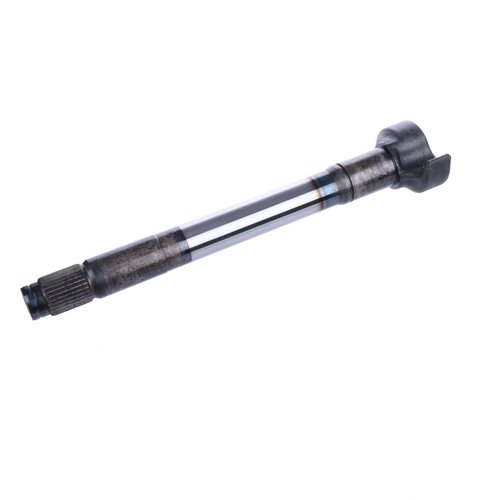

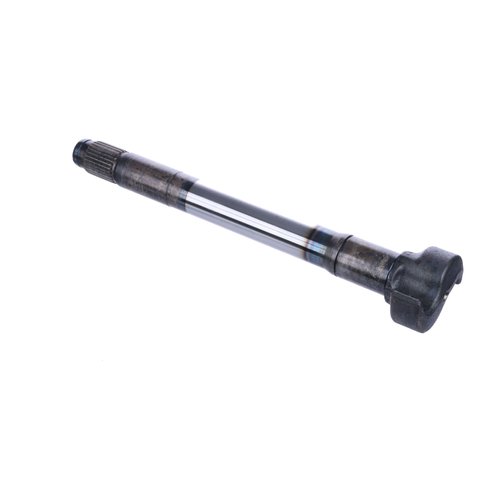

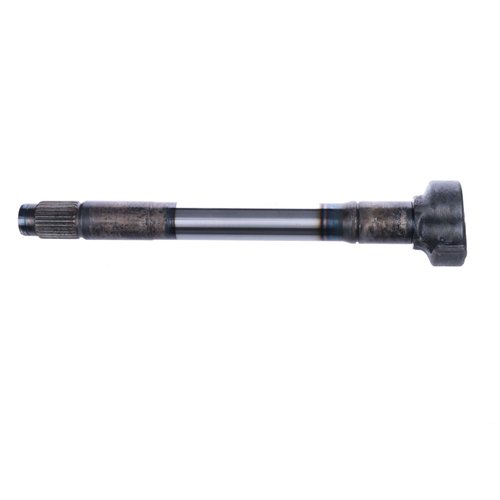

Camshafts
Camshaft Spline Count:
28
Effective Length:
14.23 in.
Brake Diameter:
16.50 in.
Left or Right:
LH
Head Type:
11
Bushing Journal Dia.:
1.62 in.
Camshaft Spline Dia.:
1.50 in.
OEM:
Meritor
Paired Camshaft:
2210Q8207
Brake Type:
Q Plus
VMRS Code:
013-017-004
| Part Number | Description |
|---|---|
| BRAKE ASSY | |
| BRAKE ASSY | |
| BRAKE ASSY | |
| BRAKE ASSY | |
| BRAKE ASSY | |
| MX23 - 160 REBUILD KIT | |
| BRAKE ASSY |
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Other | 2210R8208RI, 2500415C1, 82352210R8208, 96282210R8208, ATI2210R8208, HR2210R8208, RO2210R8208, TDA2210R8208, TWD2210R8208 |
