E-15016

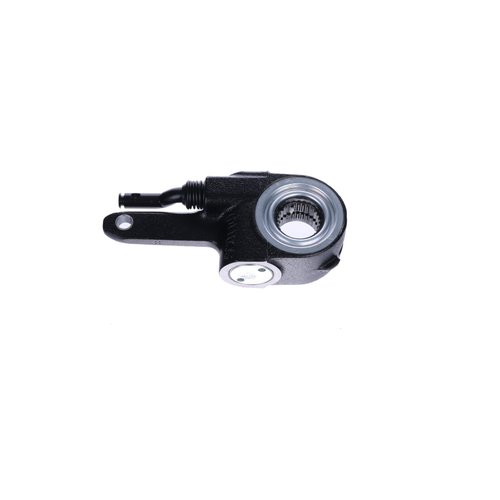

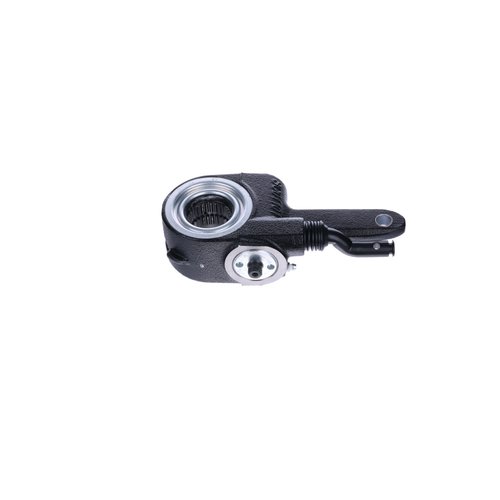

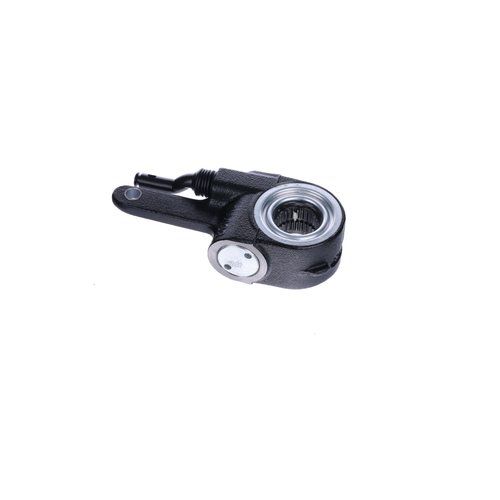

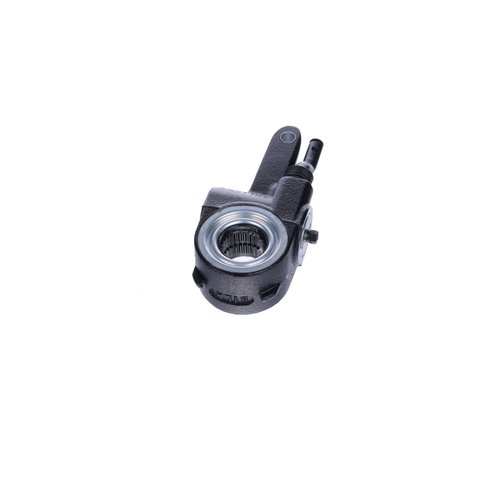

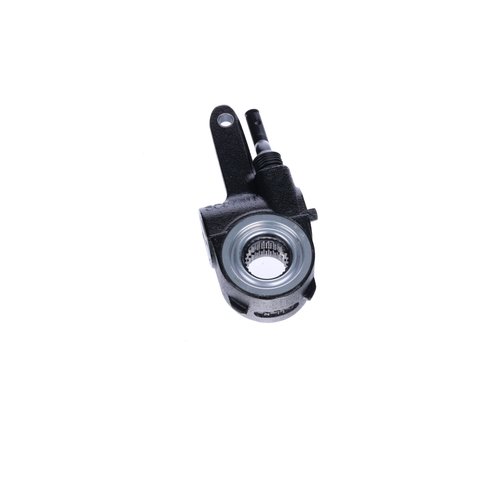

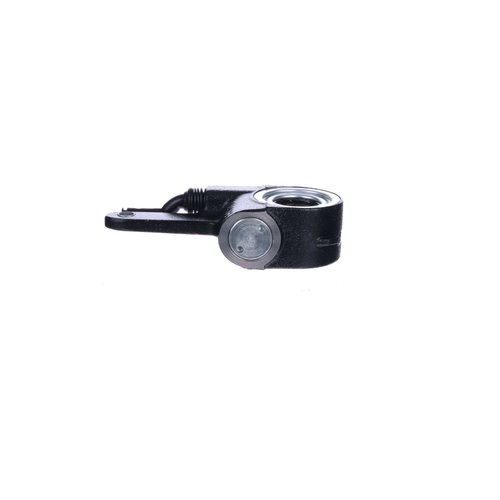

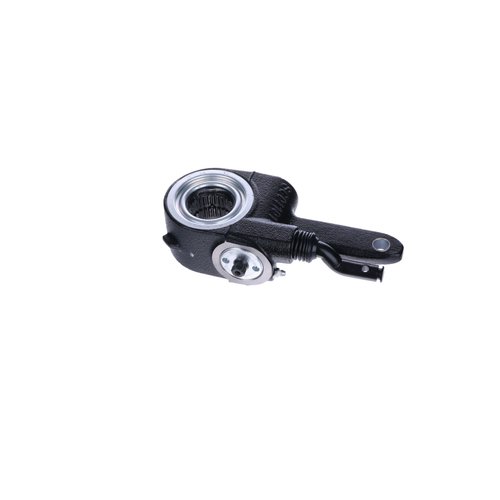

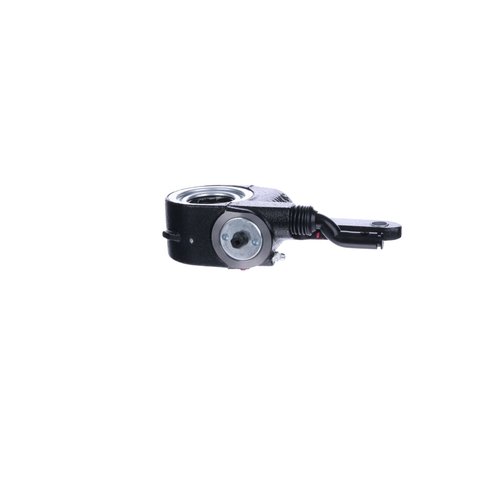

AIR BRAKE - ASA - GUNITE
Submit
Cancel
Product Details
Specifications
Reference Material
Part Interchange
Visual Search
Status:
Active
Weight:
7.25
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879634197
Brand:
Euclid Genuine
Marketing Group:
Gunite
AllMakes or OE:
OE
Production Part Number:
AS1132
Arm Length:
5.5 in.
Model:
Gunite
Clevis Type:
Collar Lock Straight
Slack Spline Diameter:
1.50 in.
Service Part Number:
AS1132
Slack Spline Count:
10
OEM:
Gunite
Type:
Unhanded
Notes:
Use clevis with 1.02 in. pin center. Furnished with (1) .50 in. and (1) .625 in. Collar Nuts
Sensing Type:
Clearance
Brake Size:
16.50 in.
Clevis Threads per inch:
20
Application:
Steer & Drive
Clevis Thread Diameter:
0.50 in.
Aftermarket Extended Warranty - General:
1 Year - Standard Meritor Aftermarket Warranty
Bushing Inside Diameter:
0.50 in.
Chamber Sizes:
Multiple
VMRS Code:
013-017-005
Maximum Torque Rating:
Less than 15 foot pounds
Related Unclevised Number:
E-15001
Related Clevis Kit:
E-15072
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Automann | 1381011 |
| Dana | 25QD51P2, 974294, M16WR1333 |
| Dayton Parts Batco | 05761 |
| Freightliner | 6814205738, 764013505, GUNAS1032, GUNAS1132, GUNSA09902 |
| Gunite | AS1032, AS1132 |
| Mack | 25QD51P2, 3398AS1032, 3398AS1132 |
| Navistar | ZBRAS1032, ZBRAS1132 |
| Peterbilt | 10480701, 306008 |
| Sirco Brake | SA1132 |
| Volvo | 1090342, 20527305, 3918358, 3936096, 3947847, 764010134, 764013805, 8060851, 8084129 |
| Western Star | 764013455, 764013498, 764013505 |
