Product Details
Specifications
BOM
Reference Material
Part Interchange
Status:
Active
Weight:
10.90
Unit Pack:
1
Pallet Quantity:
126
UPC Code:
737238683124
Brand:
Meritor Genuine
Marketing Group:
11 9/16 Width Meritor ADB1560"
Backing Plate Height:
3 1/2 in.
Lining Type:
Meritor
Backing Plate Width:
11 5/8 in.
Copper Compliance Level:
N
Application:
Refuse
FMSI:
268
Genuine/Aftermarket:
Genuine
Type:
ADB
Model:
ADB1560
Caliper Type:
Single Piston
OEM:
Meritor
VMRS Code:
013-002-027
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB1461 - Meritor Air Disc Brake Catalog
|
| Service Parts Instructions: |
TP94187 - Service Parts Instructions
|
| Xpress Facts: |
Air Disc Brake Product Information
|
Competitor
Part Number
Other
3919218, 8235KIT15616PM, ATIKIT15616PM, K1T15616PM, KIT15616PMRI, TDAKIT15616PM
Model
KIT15616PM

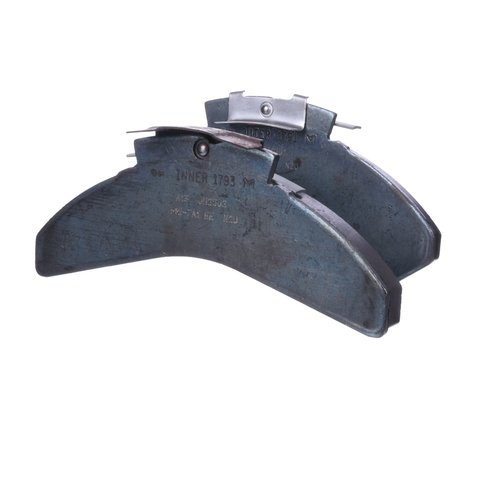

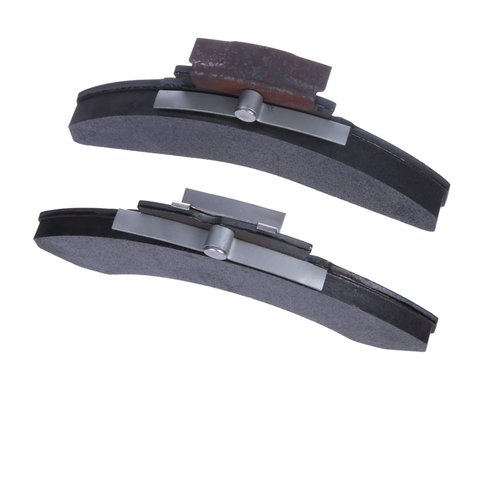

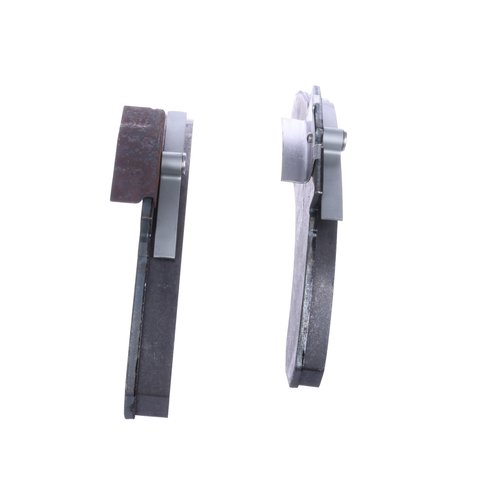

AIR DISC BRAKE - PAD KIT
Qty
