M807023

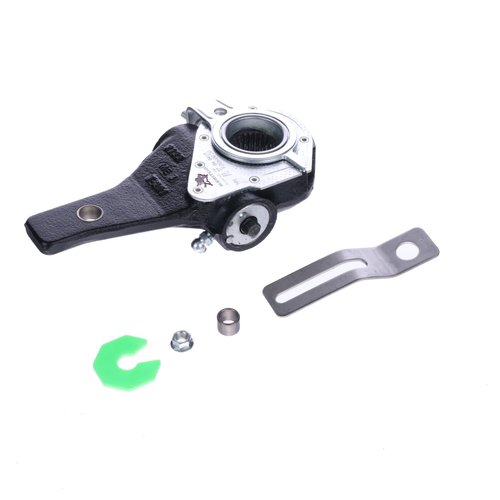

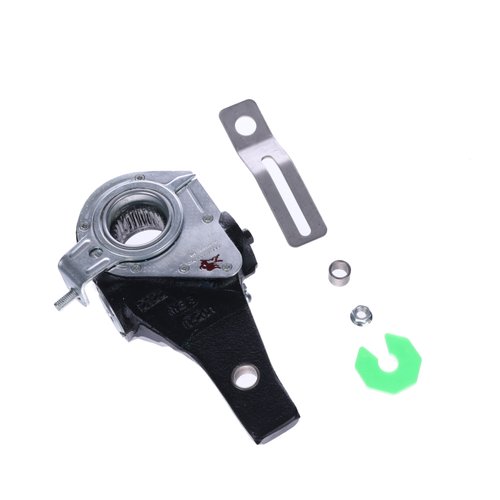

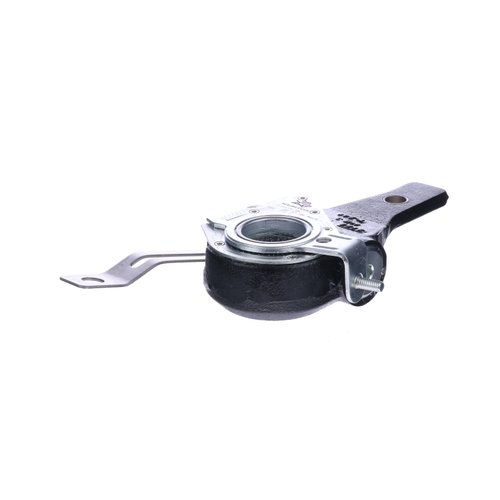

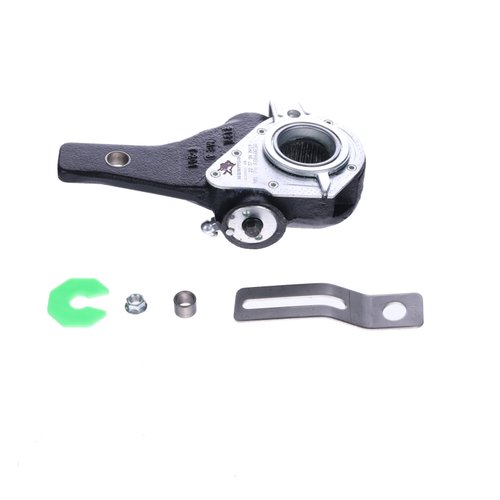

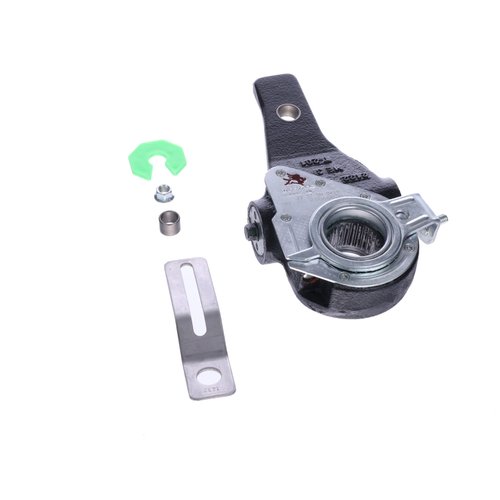

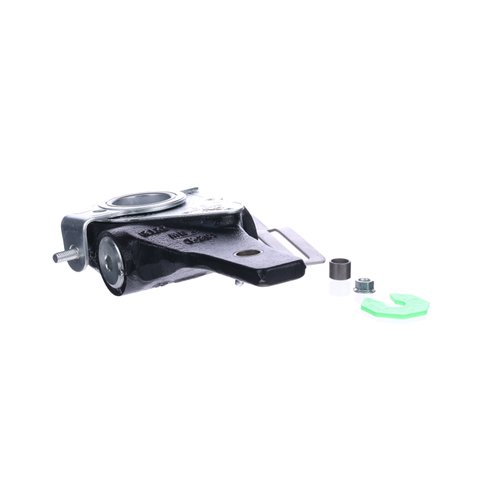

AIR BRAKE - ASA - HALDEX AA1 STYLE
Submit
Cancel
Product Details
Specifications
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
8.00
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879824291
Brand:
Meritor
Marketing Group:
Haldex
Model:
AA1 Replacement
Production Part Number:
409-10741
AllMakes or OE:
AllMakes
Arm Length:
5.00 in. or 6.00 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
10
Application:
Drive
Aftermarket Extended Warranty - Severe D:
2 Years / 100K Miles
Sensing Type:
Clearance
Type:
Unhanded
OEM:
Haldex
Aftermarket Extended Warranty - Linehaul:
6 Years / 1 Million Miles
Brake Size:
16.50 in.
Angle:
34 degrees
Bushing Inside Diameter:
0.625 in.
VMRS Code:
013-017-005
Service Part Number:
400-10142
Notes:
Premium version. Standard version is R806023A.
Clevis Type:
Unclevised
Maximum Torque Rating:
Less than 15 foot pounds
Related Bracket Number:
R810300
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP1639 - Meritor Clearance-Sensing Automatic Slack Adjusters
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Technical Bulletin: |
TP0547 - Installation and Maintenance of the Meritor Clearance Sensing Automatic Slack Adjuster
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Automann | 1351030 |
| Dayton Parts Batco | 05654 |
| Haldex | 40010142, 40910741 |
| TSE | TSE07150A |
| Other | 3946523, 3946754, 3946757, 40010142M1D, 4W8050, 8235M807023, HAL40010142, MD40010142, TDAM807023, ZZ40010142 |
