Product Details
Specifications
BOM
Reference Material
Part Interchange
Status:
Active
Weight:
6.98
Unit Pack:
1
Pallet Quantity:
280
UPC Code:
737238559177
Brand:
Meritor Genuine
Marketing Group:
Meritor
AllMakes or OE:
OE
Piston:
Red Piston
Type:
Type 2
Clevis Type:
Offset
Arm Length:
5.50 in.
Slack Spline Diameter:
1.25 in.
Slack Spline Count:
10
Sensing Type:
Stroke
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
Model:
Meritor
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
OEM:
Meritor
Chamber Sizes:
20
VMRS Code:
013-017-005
Notes:
Red piston. Drum brake.
Clevis Thread Diameter:
0.625 in.
Clevis Threads per inch:
18
Maximum Torque Rating:
More than 45 inch pounds
Related Clevis Kit:
R810025
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Technical Bulletin: |
TP9173A - Technical Bulletin
|
| Video: |
Meritor Stroke ASA Video
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Other
1666377C91, 8235R802049, ATIR802049, R802049RI, RIR802049, ROR802049, TDAR802049
Model
R802049

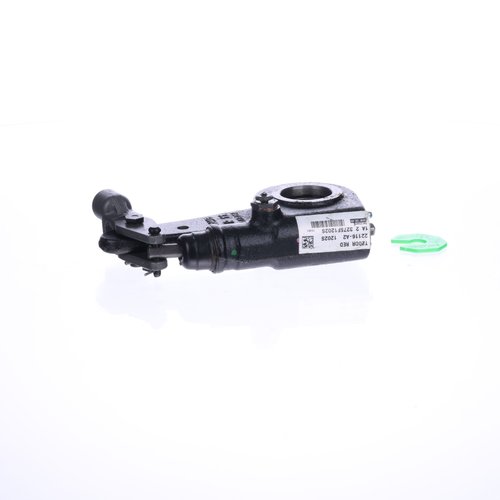

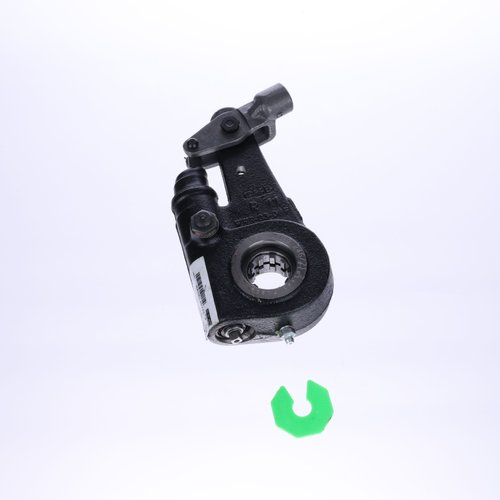

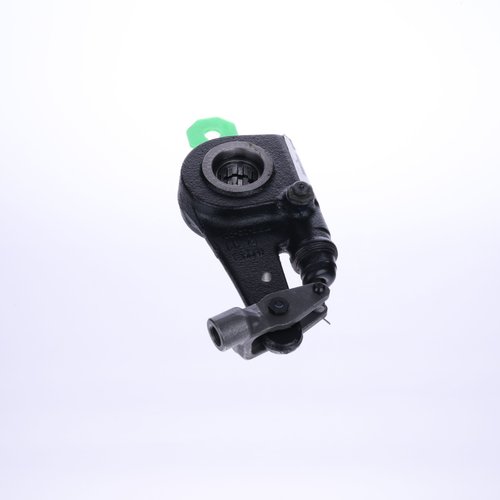

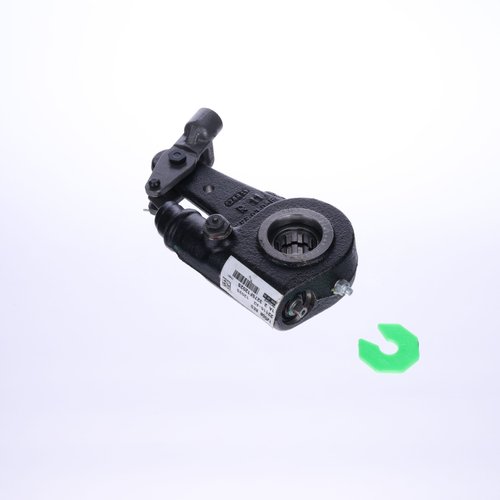

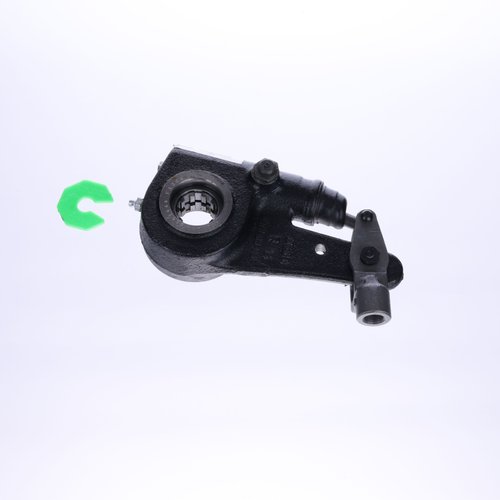

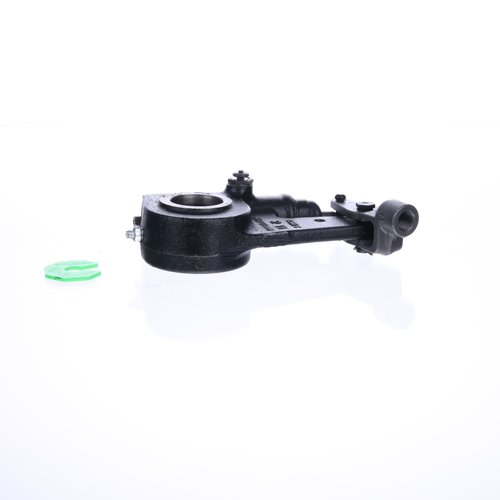

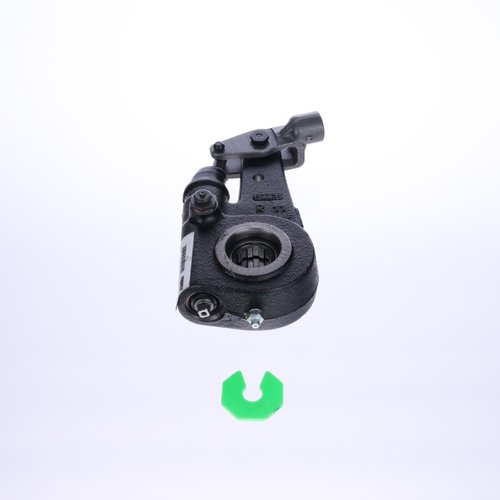

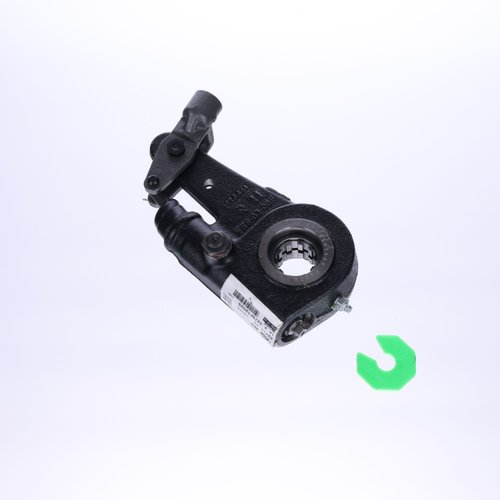

AIR BRAKE - ASA - MERITOR
Qty
