Product Details
Specifications
BOM
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
6.69
Unit Pack:
1
Pallet Quantity:
280
UPC Code:
737238562740
Brand:
Meritor Genuine
Marketing Group:
Meritor
Clevis Type:
Straight
Piston:
Blue Piston
Production Part Number:
A44-3275-A-1145
AllMakes or OE:
OE
Type:
Type 2
Arm Length:
5.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
Model:
Meritor
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Sensing Type:
Stroke
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
OEM:
Meritor
Chamber Sizes:
30
Notes:
Blue piston. Disc brake.
VMRS Code:
013-017-005
Clevis Thread Diameter:
0.625 in.
Clevis Threads per inch:
18
Maximum Torque Rating:
More than 45 inch pounds
Related Unclevised Number:
R803051
Related Clevis Kit:
R810019
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Technical Bulletin: |
TP9173A - Technical Bulletin
|
| Video: |
Meritor Stroke ASA Video
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Other | 1694310C91, 764015074, 8235R802462, 85102756, ATIR802462, R802462RI, RIR802462, ROR802462, RWR802462, TDAR802462, TWDR802462, ZBRAS1040, ZBRAS1140, ZZCS56040 |

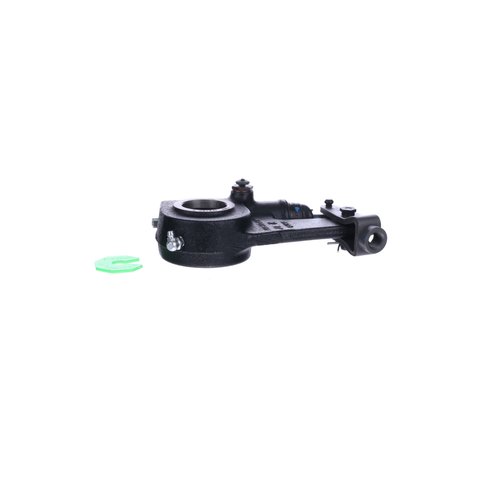

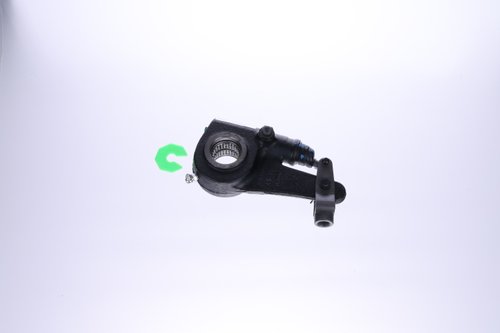

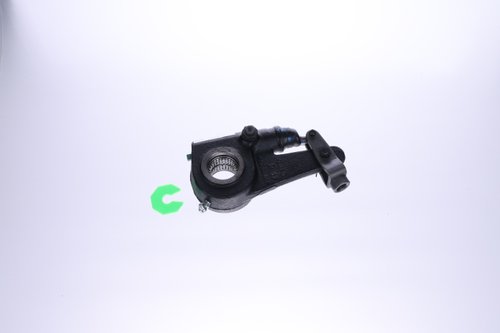

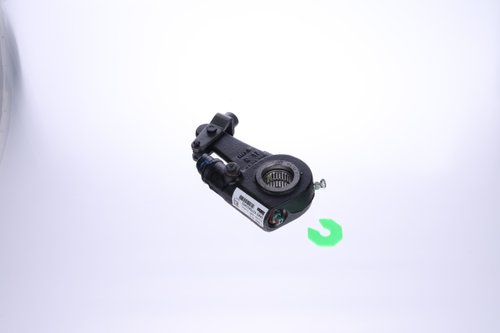

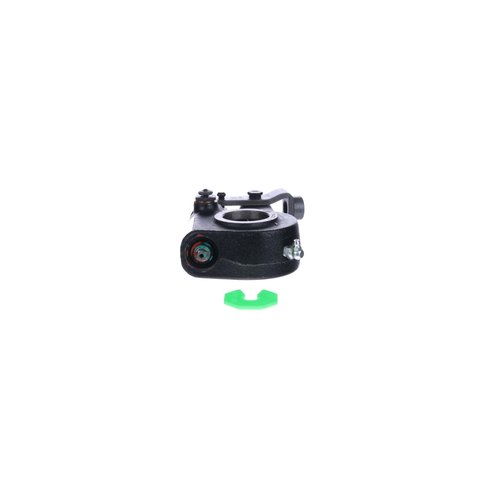

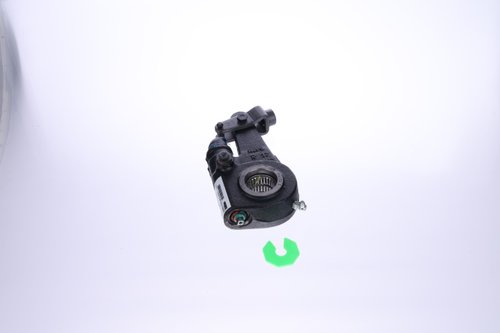

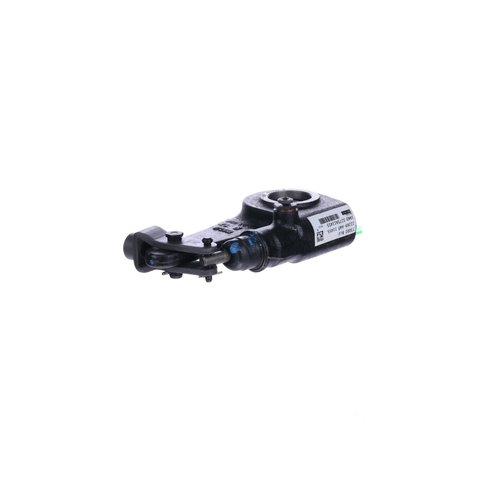

Model
R802462
AIR BRAKE - ASA - MERITOR
