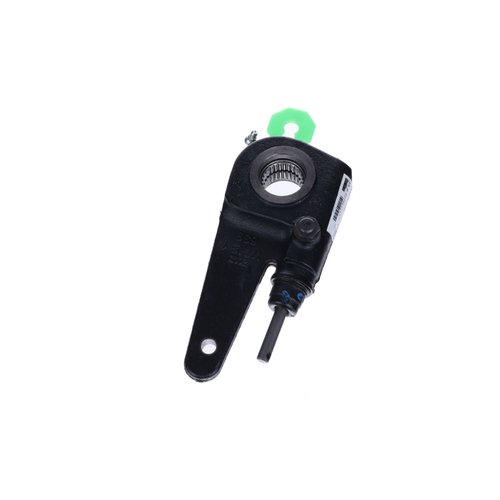

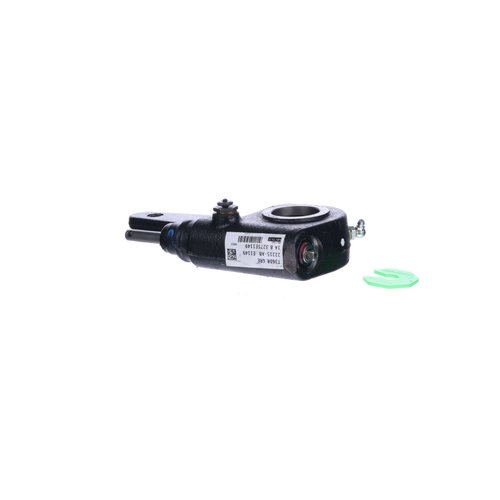

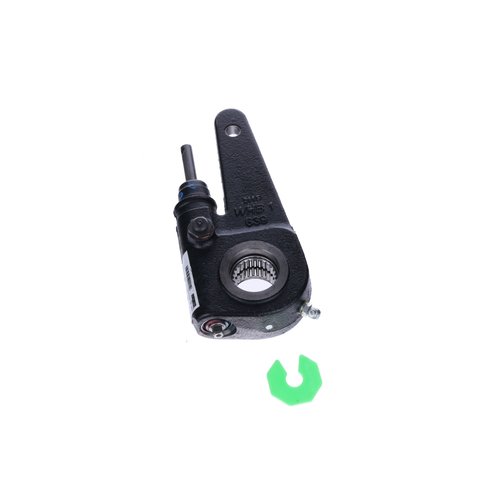

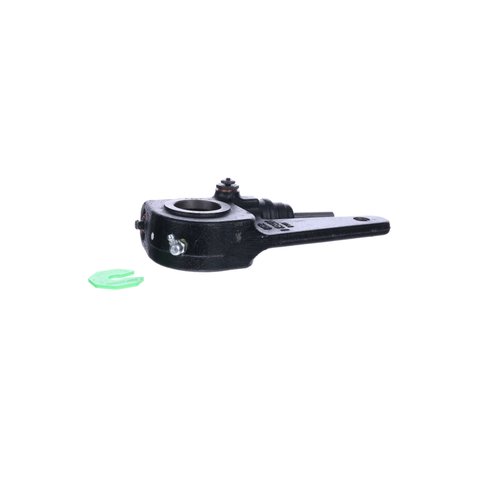

Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
6.89
Unit Pack:
1
Pallet Quantity:
280
UPC Code:
737238837336
Brand:
Meritor Genuine
Marketing Group:
Meritor
Piston:
Green Piston
Type:
Type 2
AllMakes or OE:
OE
Clevis Type:
Unclevised
Arm Length:
6.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
OEM:
Meritor
Sensing Type:
Stroke
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
Model:
Meritor
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Chamber Sizes:
36
VMRS Code:
013-017-005
Notes:
Green piston. Drum brake.
Maximum Torque Rating:
More than 45 inch pounds
Related Clevis Kit:
R810009
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Technical Bulletin: |
TP9173A - Technical Bulletin
|
| Video: |
Meritor Stroke ASA Video
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Bendix | 10211718, 10211718, 28931415, 28931415, 28965455, 28965455, 28974849, 28974849 |
| Eaton | 808169, 808171, 808173, 808178, 813652, 813655 |
| Fruehauf | MSA40010215 |
| Other | 1693146C91, 3947657, 8235R803059, ATIR803059, R803059RI, RIR803059, ROR803059, TDAR803059, TWDR803059 |
