R806004A

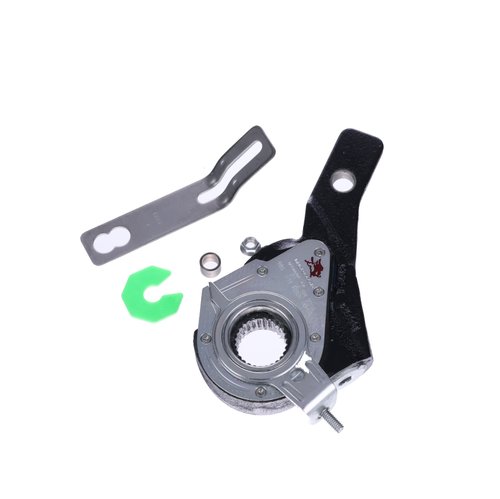

AIR BRAKE - ASA - HALDEX AA1 STYLE
Submit
Cancel
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
7.38
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879829678
Brand:
Meritor
Marketing Group:
Haldex
AllMakes or OE:
AllMakes
Model:
AA1 Replacement
Production Part Number:
409-10650
Arm Length:
5.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
OEM:
Haldex
Aftermarket Extended Warranty - Linehaul:
2 Years / 200K Miles
Brake Size:
16.50 in.
Application:
Drive
Type:
Unhanded
Sensing Type:
Clearance
Angle:
34 degrees
Bushing Inside Diameter:
0.625 in.
VMRS Code:
013-017-005
Notes:
Standard version. Premium version is M807004.
Service Part Number:
400-10154
Clevis Type:
Unclevised
Maximum Torque Rating:
Less than 15 foot pounds
Related Bracket Number:
R810300
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Sales Publication: |
SP1639 - Meritor Clearance-Sensing Automatic Slack Adjusters
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Technical Bulletin: |
TP0547 - Installation and Maintenance of the Meritor Clearance Sensing Automatic Slack Adjuster
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Automann | 1332831, 1332835 |
| Dorman | 05663 |
| Eaton | 815807 |
| Haldex | 40010154, 40910532, 40910628, 40910650 |
| MEI | 4W8155 |
| Navistar | 1694064C91, 1694309C91, 1694317C91 |
| Other | 8235R806004A, FX1332831, MERR806004A, TDAR806004A, TWDROCR806004A, ZZ40010154 |
