R806022A

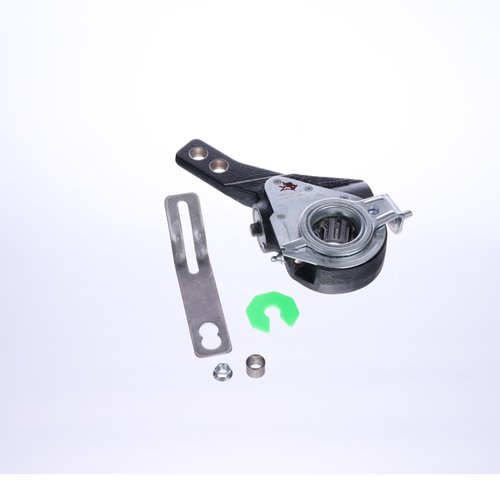

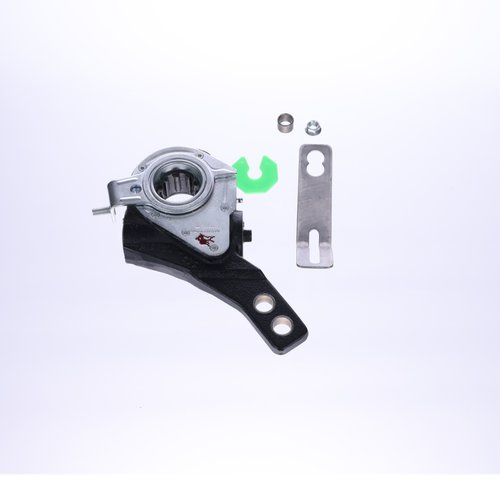

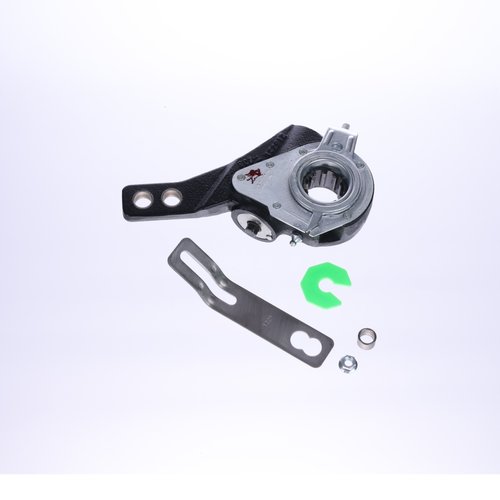

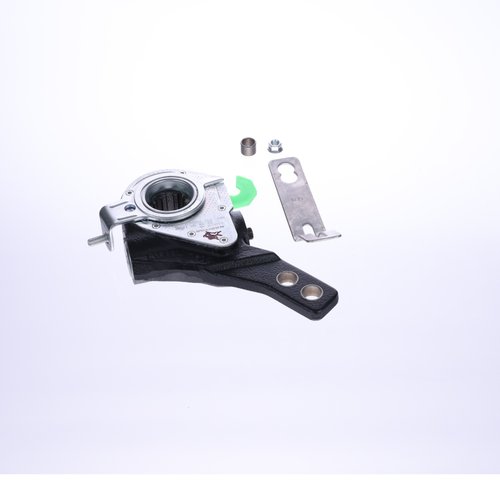

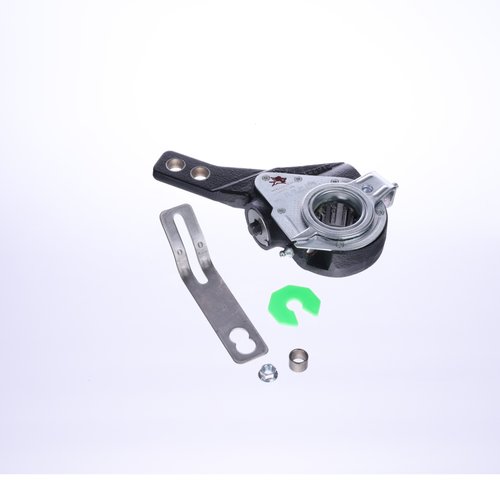

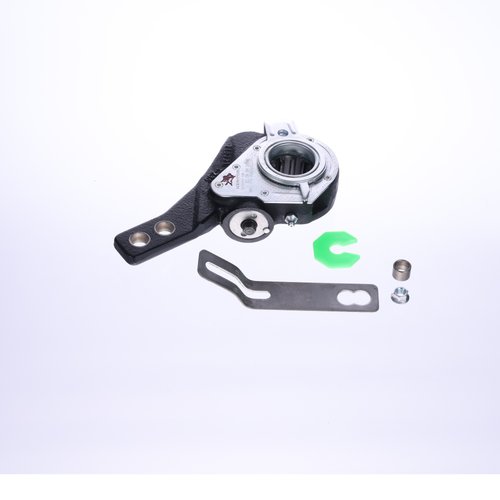

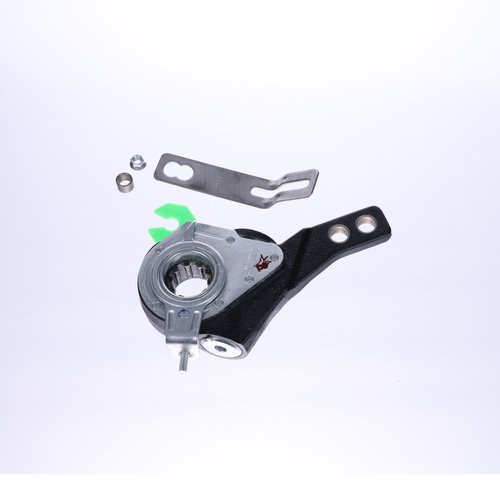

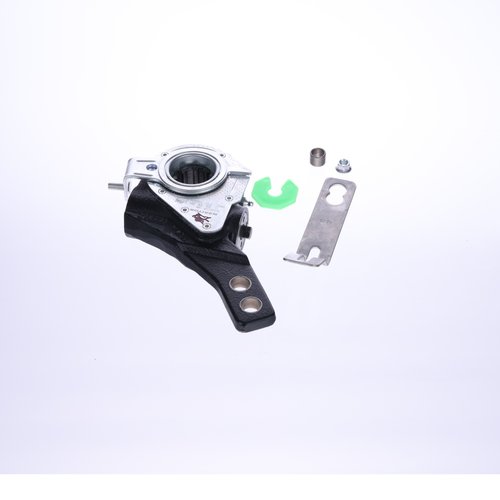

AIR BRAKE - ASA - HALDEX AA1 STYLE
Submit
Cancel
Product Details
Specifications
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
7.40
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879829852
Brand:
Meritor
Marketing Group:
Haldex
AllMakes or OE:
AllMakes
Model:
AA1 Replacement
Production Part Number:
409-10733
Arm Length:
5.50 in. or 6.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
10
Application:
Drive
Brake Size:
16.50 in.
Type:
Unhanded
Aftermarket Extended Warranty - Linehaul:
2 Years / 200K Miles
Sensing Type:
Clearance
OEM:
Haldex
Angle:
34 degrees
Bushing Inside Diameter:
0.625 in.
Notes:
Standard version. Premium version is M807022. Self-setting alternative is M808022.
Service Part Number:
400-10143
VMRS Code:
013-017-005
Clevis Type:
Unclevised
Maximum Torque Rating:
Less than 15 foot pounds
Related Bracket Number:
R810300
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1639 - Meritor Clearance-Sensing Automatic Slack Adjusters
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Technical Bulletin: |
TP0547 - Installation and Maintenance of the Meritor Clearance Sensing Automatic Slack Adjuster
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Alliance
ABPN42AS40010143
Automann
1331031
Bendix
317166
Dayton Parts Batco
05661
Fleetrite
FLT40010143
Haldex
40010143, 40910733
MEI
4W8045
Mack
25QD410P4
Navistar
1694310C91, 1694312C91, 1694313C91, 1694318C91, 1694319C91
Volvo
3946255
Other
8235R806022A, FX1331031, HRR806022A, MERR806022A, ROR806022A, SA10103, TDAR806022A
Model
R806022A
AIR BRAKE - ASA - HALDEX AA1 STYLE
