R806024A

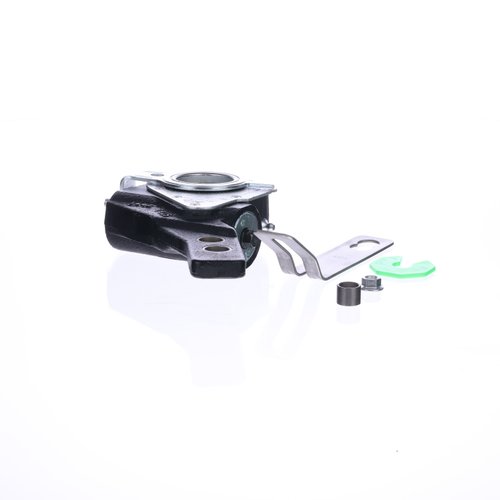

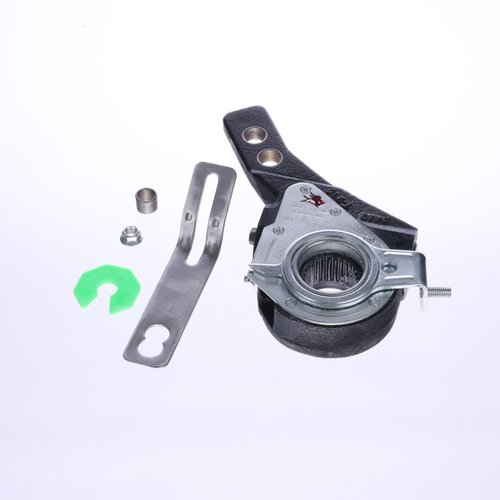

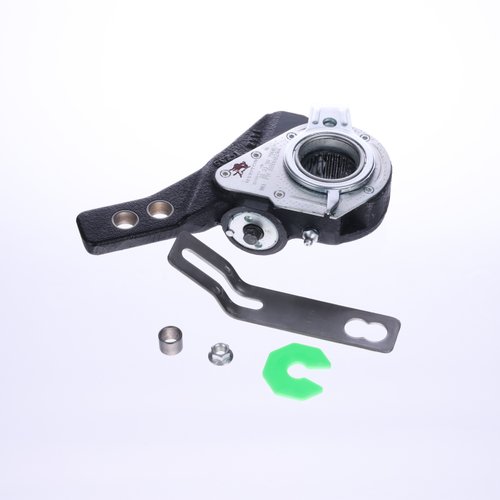

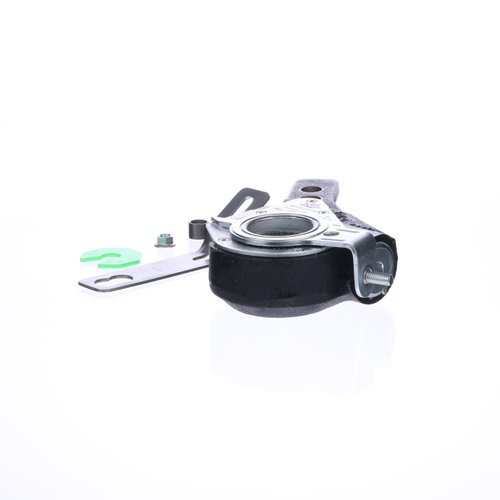

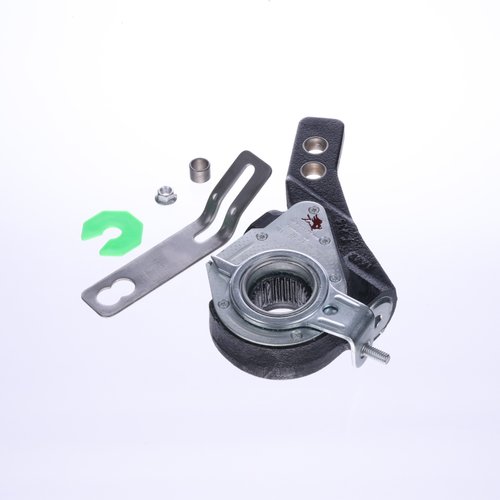

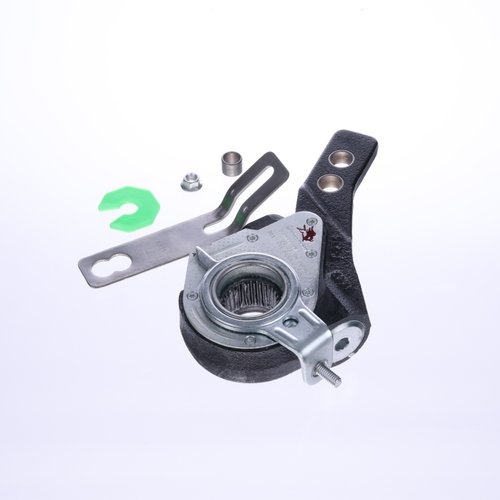

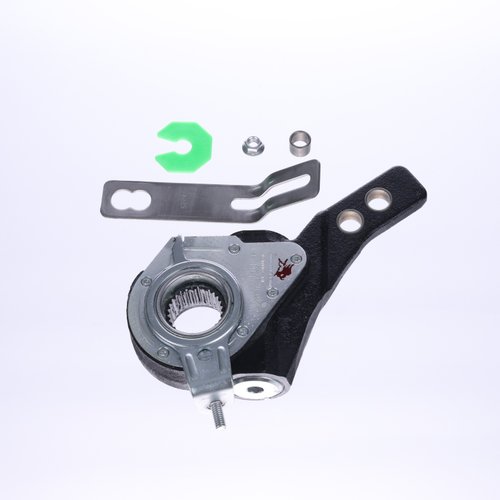

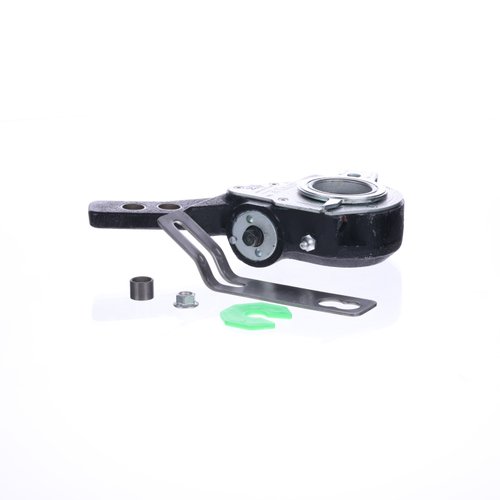

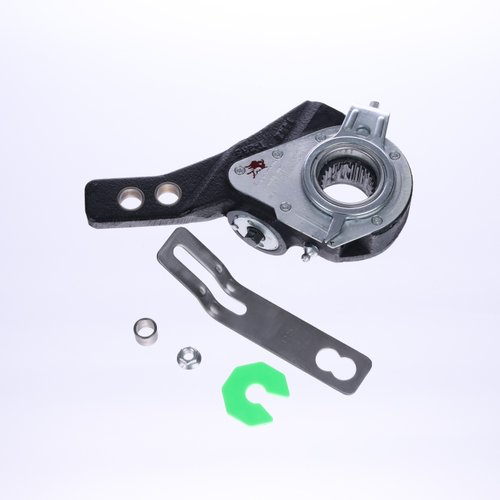

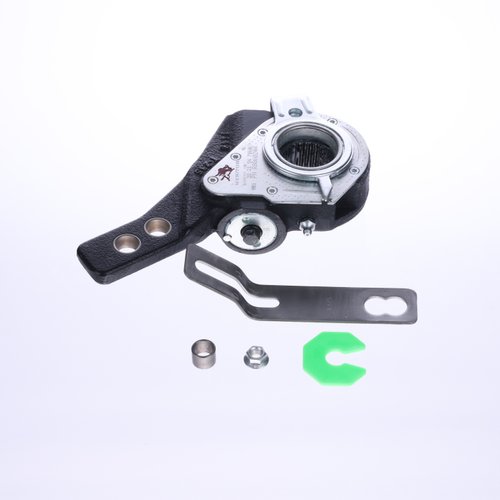

AIR BRAKE - ASA - HALDEX AA1 STYLE
Submit
Cancel
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
7.14
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879829876
Brand:
Meritor
Marketing Group:
Haldex
Model:
AA1 Replacement
AllMakes or OE:
AllMakes
Production Part Number:
409-10742
Arm Length:
5.00 in. or 6.00 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Type:
Unhanded
Aftermarket Extended Warranty - Linehaul:
2 Years / 200K Miles
OEM:
Haldex
Brake Size:
16.50 in.
Application:
Drive
Sensing Type:
Clearance
Angle:
34 degrees
Bushing Inside Diameter:
0.625 in.
Service Part Number:
400-10140
VMRS Code:
013-017-005
Notes:
Standard version. Premium version is M807024.
Clevis Type:
Unclevised
Maximum Torque Rating:
Less than 15 foot pounds
Related Bracket Number:
R810300
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP1639 - Meritor Clearance-Sensing Automatic Slack Adjusters
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Technical Bulletin: |
TP0547 - Installation and Maintenance of the Meritor Clearance Sensing Automatic Slack Adjuster
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Alliance | ABPN42AS40010140 |
| Automann | 1332830 |
| Bendix | 815806 |
| Dayton Parts Batco | 05655 |
| Fleetrite | FLT40010140 |
| Haldex | 40010140, 40910615, 40910742 |
| MEI | 4W8055 |
| Mack | 25QD410 |
| Sirco Brake | SA10100 |
| Volvo | 3946256 |
| Other | 8235R806024A, MERR806024A, ROR806024A, TDAR806024A, TWDR806024A |
