Status:
Active
Weight:
14.10
Unit Pack:
1
Pallet Quantity:
120
UPC Code:
737238049616
Brand:
Meritor Genuine
Marketing Group:

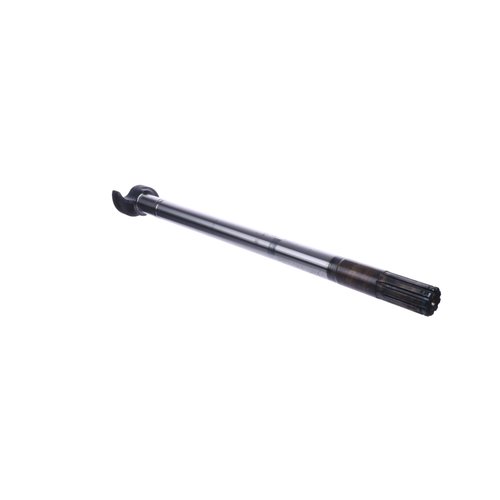

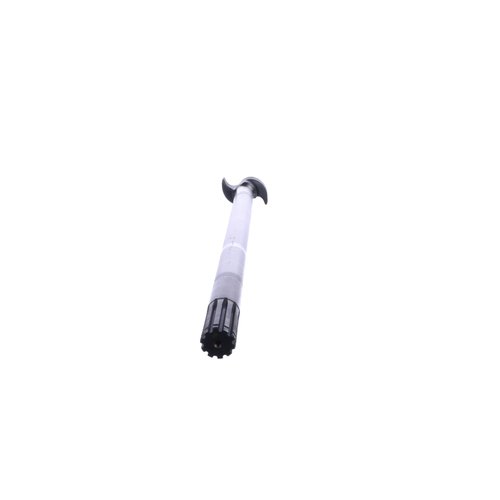

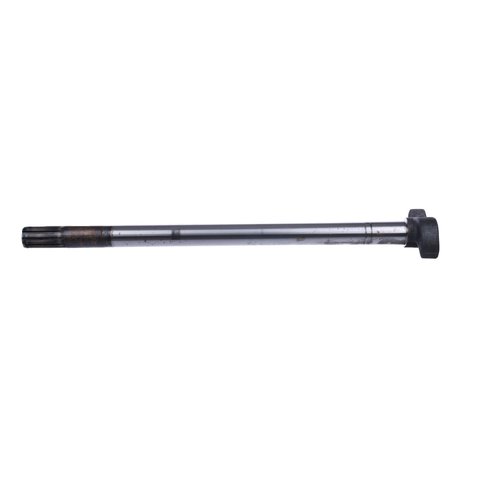

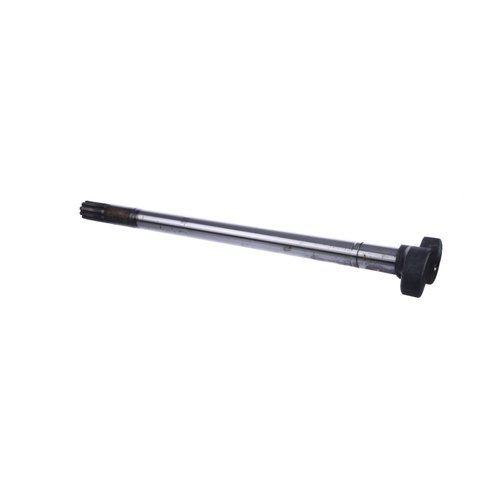

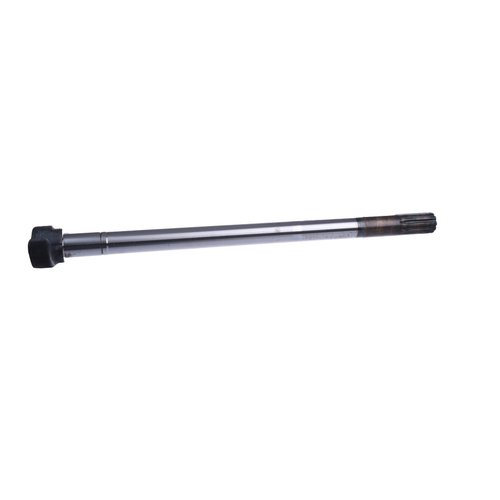

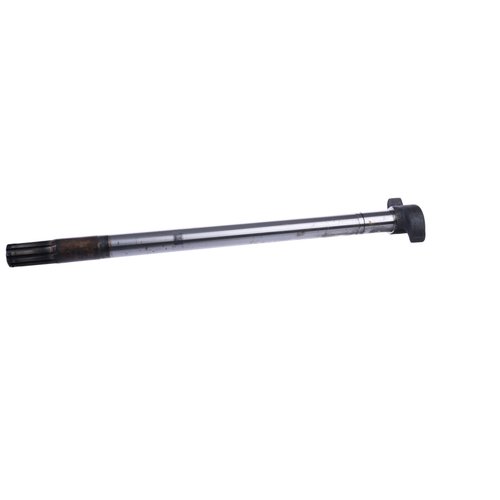

Camshafts
Left or Right:
RH
Effective Length:
23.97 in.
Camshaft Spline Count:
10
Brake Diameter:
16.50 in.
Head Type:
01
Bushing Journal Dia.:
1.50 in.
Camshaft Spline Dia.:
1.50 in.
Bushing Journal Length:
2.25 in.
OEM:
Meritor
Camshaft Repair Kit:
KIT9078 - P Brakes; KIT8042 - Q Brakes
Axle:
Trailer
Paired Camshaft:
2210D6400
Brake Hardware Kit:
R509000 - P Brakes, KIT8000HD - Q Brakes
Brake Type:
P, Q
VMRS Code:
013-017-004
Application Information 1:
For slight variations in length, extra spacer washers may be required.
Application Information 2:
Q Plus cams can be used to replace the standard Q style cams; however, a Q style cam cannot be used to replace a Q Plus cam.
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Automann | 12410240002 |
| BWP | M746R |
| Dana Clutch | 16395 |
| Dana | M16WK10326 |
| Eaton | 820083 |
| Haldex | 41547 |
| Standard Forge | 202100242R |
| Other | 16583, 2210C6399RI, 82352210C6399, ATI2210C6399, BWPM746R, CS41525, R607041, TDA2210C6399, WA055180 |
