Status:
Active
Weight:
14.25
Unit Pack:
1
Pallet Quantity:
120
UPC Code:
737238050049
Brand:
Meritor Genuine
Marketing Group:

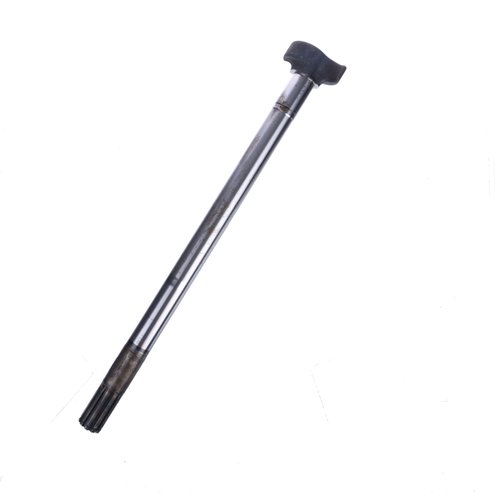

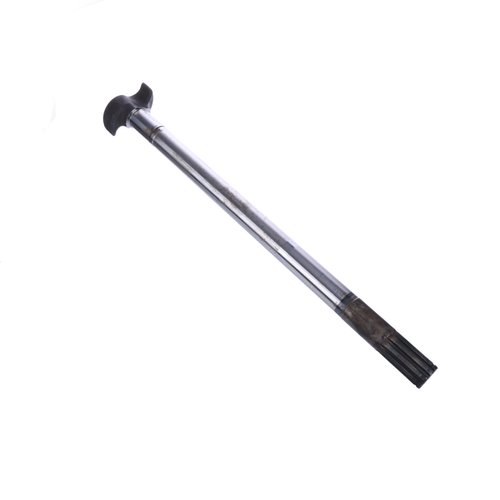

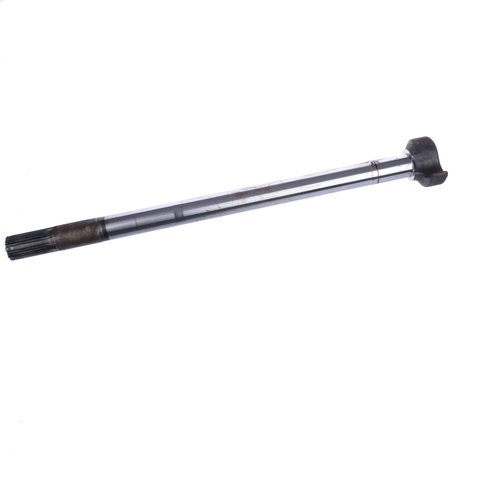

Camshafts
Effective Length:
23.97 in.
Brake Diameter:
16.50 in.
Camshaft Spline Count:
10
Left or Right:
LH
Head Type:
01
Bushing Journal Dia.:
1.50 in.
Camshaft Spline Dia.:
1.50 in.
Bushing Journal Length:
2.25 in.
Axle:
Trailer
Paired Camshaft:
2210C6399
Brake Hardware Kit:
R509000 - P Brakes, KIT 8000HD - Q Brakes
OEM:
Meritor
Camshaft Repair Kit:
KIT8046 Meritor; R615003 Eaton; R615008 (Spicer); R615008 (Std Forge)
Brake Type:
P, Q
VMRS Code:
013-017-004
Application Information 1:
For slight variations in length, extra spacer washers may be required.
Application Information 2:
Q Plus cams can be used to replace the standard Q style cams; however, a Q style cam cannot be used to replace a Q Plus cam.
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Xpress Facts: |
Air Brake Product Information
|
| Competitor | Part Number |
|---|---|
| Automann | 12410240001 |
| BWP | M746L |
| Dana Clutch | 16396 |
| Dana | M16WK10226 |
| Dayton Parts Batco | 04572412 |
| Eaton | 820084 |
| Haldex | 41546 |
| Standard Forge | 202100242L |
| Other | 16584, 202100245L, 2210D6400RI, 4572412, 82352210D6400, ATI2210D6400, BWPM2601L, BWPM2601R, BWPM746L, L903, M16WK10326, M16WK11111, TDA2210D6400, WA055181 |
